TORAY T1100G MONOCOQUE // 740G

Born in Unforgiving Terrain.

Engineered for 200+ mile unpaved sufferfests. Raw high-modulus unidirectional carbon fused with shock-absorbing Dyneema fibers to eliminate fatigue over 14 hours of continuous hammering.

VERTICAL COMPLIANCE // 18MM MICRO-FLEX

Pivotless Compliance. Absolute Power Transfer.

Asymmetric flattened chainstays yield 18mm of passive vertical damping to smooth washboard gravel while maintaining a monolithic 86mm bottom bracket junction with zero torsional flex.

18 mm Vertical Yield
0.0 % BB Watt Loss
50MM CLEARANCE // ZERO DRAG PENALTY

Unbound Race Proven. Infinite Horizon.

Accommodates 50mm high-volume tires with 8mm of mud shedding buffer on each side. Truncated NACA aerofoils slice headwinds across the Kansas prairie.

Scroll to Traverse Layup Metrology
01 // Material Architecture

Toray T1100G & Dyneema Hybrid Matrix.

Every Valkyrie frame is hand-laid using 384 individual pre-preg carbon plies with targeted fiber orientation. Ultra-high tensile fibers at the head tube and bottom bracket provide laser-sharp steering accuracy, while woven Dyneema along the downtube shields against high-speed rock strikes.

Continuous Monocoque Front Triangle

Cured in high-pressure EPS silicone mandrels to eliminate internal resin voids and maintain uniform 0.9mm wall thickness.

Dyneema Impact Shield Armor

Ultra-high-molecular-weight polyethylene fibers woven into the bottom bracket shield preventing catastrophic rock-puncture failures.

Integrated Titanium Dropouts & Axle Sleeves

Direct-threaded Ti-6Al-4V titanium inserts preventing thread stripping over hundreds of wheel changes in dusty race conditions.

Finite Element Layup Distribution

Structural Zone Metrology

740g Raw Frame (Size 54)
Zone A: Bottom Bracket Power Vault (BB86)
142 N·m/deg Stiffness

Consists of 32 overlapping layers of Toray T1100G high-modulus unidirectional carbon oriented in a 0°/45°/90° quasi-isotropic weave to completely resist bottom bracket deflection under 1,200W seated or standing sprints.

Carbon Grade Toray T1100G
Fiber Modulus 324 GPa
Ply Count 32 Plies
02 // Race Validation

Endurance Course Simulator.

Simulate Valkyrie C41 chassis parameters across the world’s most punishing self-supported ultra-gravel courses.

UNBOUND GRAVEL 200 // KANSAS FLINT HILLS
RECORD: 9H 14M // 33.2 KM/H AVG
Select Race Terrain Profile:

Unbound 200 Optimized Setup

Tuned for knife-like flint gravel and relentless crosswinds. 45mm fast-rolling tires with aero-optimized 4.5 deep section carbon wheels saving over 22 watts over 200 miles.

Tire Rec. 45mm @ 31 PSI
Gearing 42T x 10-44
Est. Elev. 3,200 m

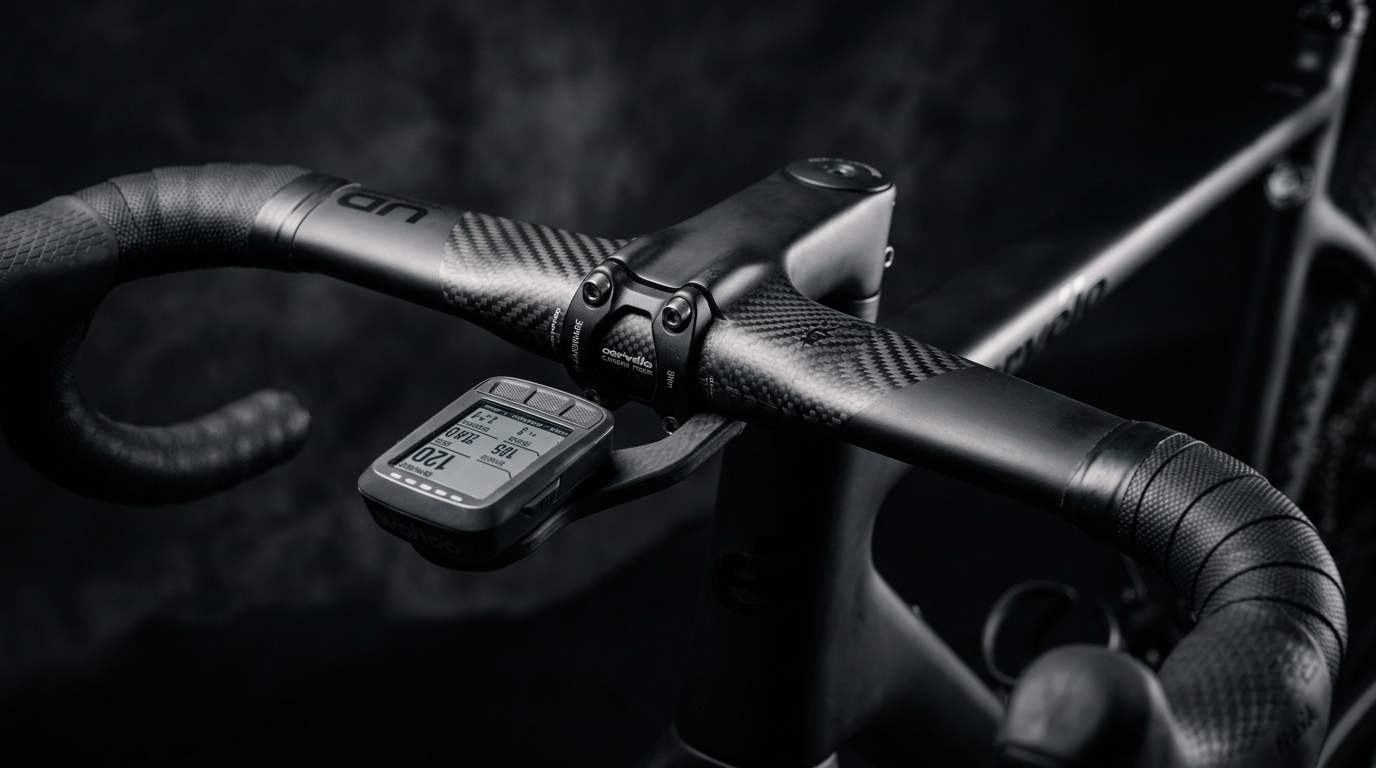

Valkyrie Carbon Aero Cockpit
01 // FLUID COCKPIT

Integrated Cable-Free Barstem

Full internal mechanical routing through oversized headtube bearing with zero exposed cables.

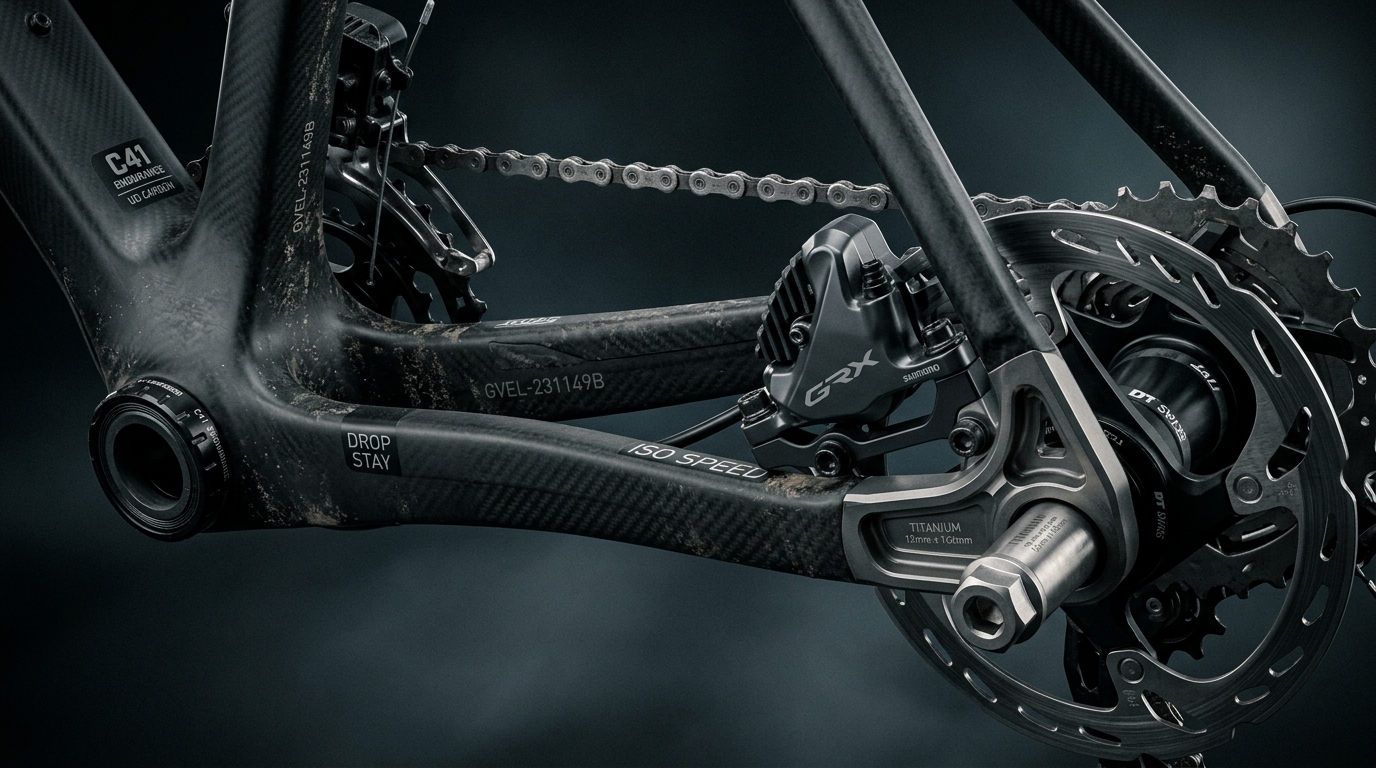

Valkyrie Rear Triangle and Hydraulic Calipers
DIRECT FLAT MOUNT 160MM // TITANIUM THRU-AXLE
03 // Micro Engineering

Integrated Aero Cockpit & Wireless Architecture.

Zero exposed cables from levers to brake calipers. The one-piece Valkyrie aerobar routes hydraulic fluid through a custom headset bearing channel to prevent snagging on handlebar bags.

Out-Front Structural GPS Mount

Direct carbon-bolted computer mount rated to support high-intensity navigation head units and 1,200-lumen endurance night lights without vibration shake.

Direct-Mount Flat Disc Braking

Engineered with finned heat-sink pads and 160mm floating rotors for relentless downhill braking control in driving rain and mud.

CeramicSpeed BB86 Bottom Bracket

Dual-sealed low-friction ceramic bearings tested to withstand continuous submersion in glacial river crossings without contamination.

04 // Geometry & Fit

Precision Endurance Geometry Matrix.

Longer wheelbase and slacker 70.5° head angle provide extreme high-speed stability on loose gravel descents without sacrificing responsive cornering.

Metric / Size 49 cm (XS) 52 cm (S) 54 cm (M) 56 cm (L) 58 cm (XL)
Stack (mm) 540 560 578 598 618
Reach (mm) 370 380 388 396 404
Head Tube Angle 70.0° 70.5° 70.5° 71.0° 71.5°
Chainstay Length (mm) 425 425 425 425 425
BB Drop (mm) 77 75 75 73 73
Wheelbase (mm) 1014 1024 1032 1042 1054
Max Tire Clearance 700x50c 700x50c 700x50c 700x50c 700x50c
05 // Custom Build

Configure Your Valkyrie C41.

Each frameset is individually numbered and custom-built to your anatomical fit and component preference at our workshop in Brescia, Italy.

Estimated Total Weight 6.85 KG
Build Total (MSRP) $11,400 USD
Production Lead Time: 6 Weeks
